Rhino Trailer Mounted Fire Fighting Pump

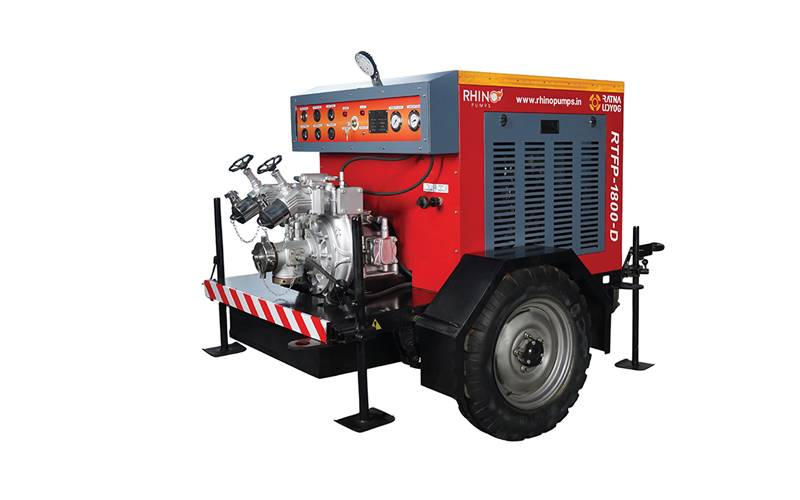

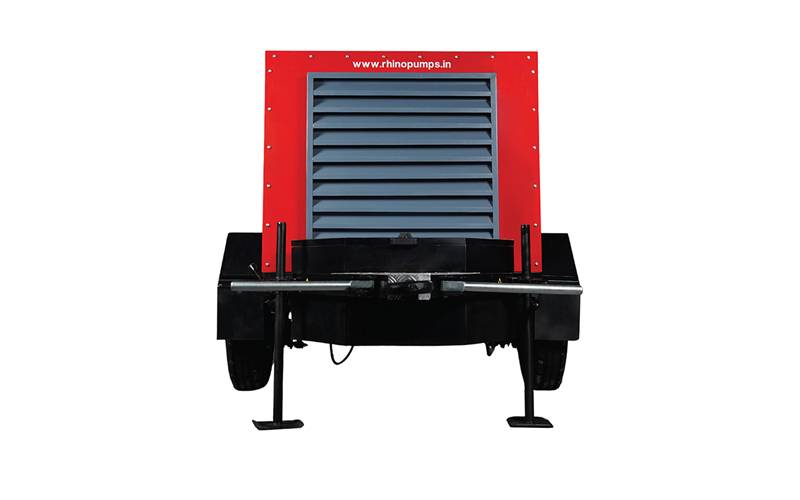

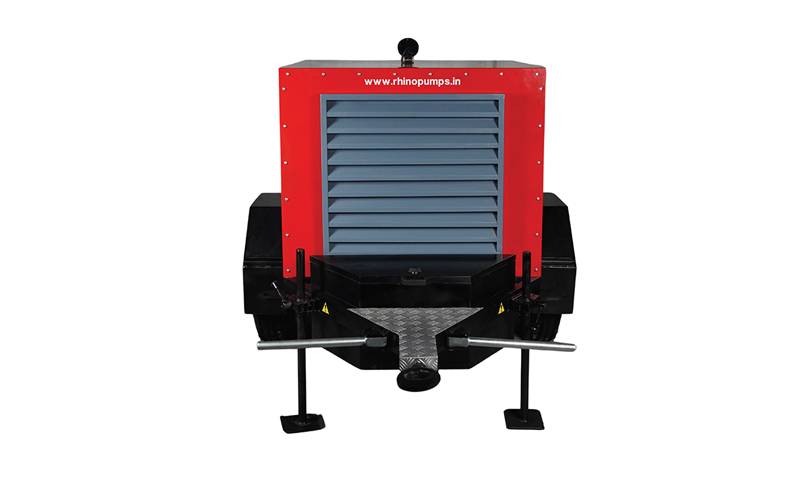

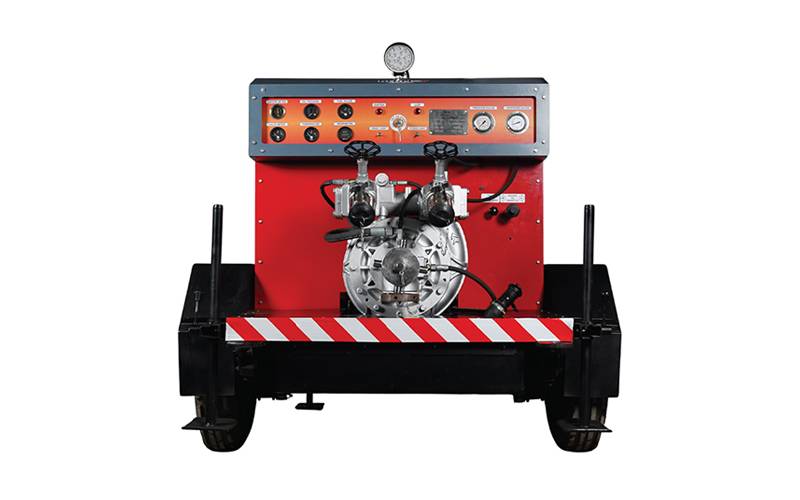

Rhino Trailer Mounted Fire Fighting Pump 1800 Lpm To 6000 Lpm
| Technical Specifications for Trailer Mounted Fire Pump | ||||||
| Sr.No. | Description | Pump Models | ||||
| RTFP-1800-D | RTFP-2000-D | RTFP-3000-D | RTFP-4000-D | RTFP-6000-D | ||
| Pump Specifications | ||||||
| 1 | Pump Capacity | 1800 LPM @ 7 Bar | 2000 LPM @ 10 Bar | 3000 LPM @ 10 Bar | 4000 LPM @ 10 Bar | 6000 LPM @ 10 Bar |
| 2 | Priming System | Automatic E-Primatic Priming System. Operated with Electromagnetic Clutch & Control Panel | ||||
| 3 | Pump MOC | Aluminum / Gunmetal / Stainless Steel Combination as per requirment | ||||
| 4 | Pump Suction | 100mm X 1 Nos. BSRT | 100mm X 1 Nos. BSRT | 140mm X 1 Nos. BSRT | 140mm X 1 Nos. BSRT | 140mm X 2 Nos BSRT |
| 5 | Pump Discharge | 2 Nos X 63mm SDT Valves | 2 Nos X 63mm SDT Valves | 4 Nos X 63mm SDT Valves | 4 Nos X 63mm SDT Valves | 6 Nos X 63mm SDT Valves |
| 6 | RPM Step Up Gear Box | Applicabe as per required ratio | ||||
| 7 | Mechanical Seal | Self Adjusting Mechanical Carbon Seal Dry run 2 Minutes | ||||
| 8 | Maximum Suction Lift | Up to 8 meters @ sea level | ||||
| Pump MOC | ||||||
| 1 | Pump Volute Casing | Aluminum / Gunmetal / Stainless Steel | ||||
| 2 | Pump Shaft | Stainless Steel 304 | ||||
| 3 | Delivery Valves & Outlet Manifold | Stainless Steel CF8 | ||||
| 4 | Impeller | Stainless Steel CF8 | ||||
| 5 | Impeller Waring Rings | Polymer Based | ||||
| 6 | Suction Inlet | Stainless Steel 304 / CF8 | ||||
| Pump Priming | ||||||
| 1 | Type | Positive Displacement Twin Piston Reciprocating Priming System. Operated by 12 or 24V Electromagnetic Clutch | ||||
| 2 | Control | Provided Auto / Manual Priming Controller with Sensor attachment. | ||||
| 3 | Working | Arrangement made to actuate the primer in manual and auto modes. When operating in manual mode,primer shall be engaged through control panel , only when it is needed. When operating in auto mode , primer must be actuated through control panel and must automatically re-engage when pressure is lost | ||||
| 4 | Disengagment | However, in both operating modes the primer shall disengage automatically at a pump discharge pressure of not more than 0.8 bar. | ||||
| Engine Specifications | ||||||
| 1 | Engine Make | Ashok Leyland Make or Equivalent | ||||
| 2 | Engine Power | 62/65 HP | 88 HP | 130 HP | 170HP | 220HP |
| 3 | Engine Type | 12 / 24 Volts Water Cooled | ||||
| 4 | Starter | Battery Operated Electric Starter | ||||
| 5 | Fuel Tank | Up to 70 Liters | Up to 70 Liters | Up to 90 Liters | Up to 150 Liters | Up to 170 Liters |
| 6 | Transmission | Flexible Holset Coupling from engine to pump | ||||
| Trailer Specifications | ||||||
| 1 | Fabrication Work | All skid, Canopy & fuel tank made with M. S. Powder Coated / Painted RED, Black & Gray color | ||||
| 2 | Suspensions | Leaf Springs with Shock Absorbers | ||||
| 3 | Wheels | 2 Nos. Cross-Country type 6 X 16 – 6/8 Ply | 2 Nos. Cross-Country type 6 X 16 – 6/8 Ply | 2 Nos. Cross-Country type 6 X 16 – 6/8 Ply | 4 Nos. Cross-Country type 6 X 16 – 6/8 Ply | 4 Nos. Cross-Country type 6 X 16 – 6/8 Ply |
| 4 | Towing | Towing Eye – ID 75mm Fix Mounted | Towing Eye – ID 75mm Fix Mounted | Towing Eye – ID 75mm Fix Mounted | Towing Eye – ID 75mm & adjustable above ground level | Towing Eye – ID 75mm & adjustable above ground level |
| 5 | Tool box | Fabricated tool box for carrying small tools & accessories. Special arrangement for suction hose mounting along with all equipment | ||||
| 6 | Parking Jack | 3 or 4 Prarking Jacks for Height Adjustment and Stability | ||||
| 7 | Lifting Provision | 4 Lifting Eyes | ||||
| 8 | Man Handling | 2 Nos. foldable man handling bars provided | ||||
| Control Panel | ||||||
| 1 | Instruments & Gauges | Pressure Gauge, Hours Meter, Compound Gauge, Ampere Meter, Throttle Control, Ignition Switch, Low Lube Oil Pressure Indicator, Engine ON/OFF, Battery Charging Fail Indicator, Engine Cooling Water Temp Gauge, Panel Light, Fuel Tank Level Gauge, Search Light, Emergency Stop, Engine RPM. | ||||
| Accessories | ||||||
| Type | As per requirment of customer | |||||
